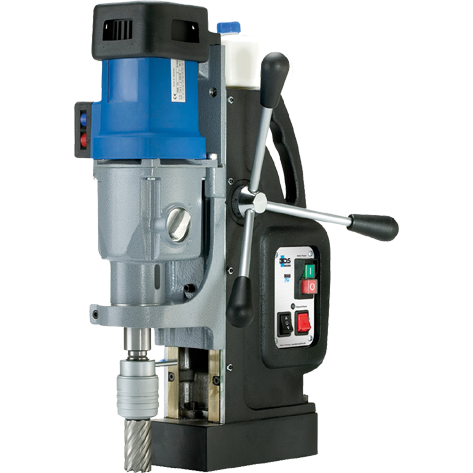

- Professional Magnetic Drilling & Tapping Machine
MAB 845Made in Germany
Friction clutch
Oil bath gearbox
Speed control
Torque control
Carbon brush indicator
Magnet indicator
Full wave control electronics
Overheating protection
Clockwise & anticlocwise rotation
Tapping
Reaming
Countersinking
Complete internal cabling
Integrated oil tank
Permanent internal lubrication
Single phase power supply
Oil bath gearbox
Speed control
Torque control
Carbon brush indicator
Magnet indicator
Full wave control electronics
Overheating protection
Clockwise & anticlocwise rotation
Tapping
Reaming
Countersinking
Complete internal cabling
Integrated oil tank
Permanent internal lubrication
Single phase power supply
Full performance and flexibility for structural steel engineering, plant construction and engineering.
> The classic of the large-size series – with MT 3
> For core drills with a cutting depth of 30 mm, 55 mm, 75 mm and 110 mm.
> Suitable for twist drills, reamer chucks, countersinks and thread cutting systems
> The classic of the large-size series – with MT 3
> For core drills with a cutting depth of 30 mm, 55 mm, 75 mm and 110 mm.
> Suitable for twist drills, reamer chucks, countersinks and thread cutting systems
-
Core drill short 30 mm:
12 - 100 mm
-
Core drill long 55 mm:
12 - 100 mm
-
Core drill overlong 75 mm:
----
-
Core drill extra-long 110 mm:
20 - 60 mm
-
Twist drilling:
≤ ø31.75 mm
-
Reaming:
≤ 31,75 mm
-
Countersinking:
ø50 mm
-
Thread cutting:
M30
-
Motor output:
1800 Watt
-
Voltage:
230V or 110V (50-60) Hz
-
Stroke:
1800 Watt
-
Swivel Base option:
Yes
-
Magnet Size:
110 x 220 x 54 mm
-
Weight:
25 kg
-
Direct arbor:
---
-
Industrial arbor:
MT 3, 32 mm Weldon (1 1/4")
-
Quick change drill chuck system:
KEYLESS, 19 mm Weldon
-
Morse taper:
MT 3
-
Speed range 1:
40 - 110 min-1
-
Speed range 2:
65 - 175 min-1
-
Speed range 3:
140 - 360 min-1
-
Speed range 4:
220 - 600 min-1
-
Permanent internal lubrication:
Yes
-
Friction clutch:
Yes
-
Torque control:
----
-
Full wave control electronics:
Yes
-
Magnet indicator:
Yes
-
Overheating protection:
Yes
-
CW/CCW rotation:
Yes
-
Carbon wear brush control:
Yes
1 Magnetic core drilling machine
1 Quick change drill chuck system
KEYLESS, 19 mm Weldon (3/4")
1 Industrial arbor
MT 3 / 32 mm Weldon (1 1/4")
1 Ejector pin ZAK 075 + 090
1 Ejector pin ZAK 100 + 120
1 Carry case on wheels
1 Safety chain
1 Offset screwdriver SW 6
1 Drill drift MT 3
1 Operating manual
1 Quick change drill chuck system
KEYLESS, 19 mm Weldon (3/4")
1 Industrial arbor
MT 3 / 32 mm Weldon (1 1/4")
1 Ejector pin ZAK 075 + 090
1 Ejector pin ZAK 100 + 120
1 Carry case on wheels
1 Safety chain
1 Offset screwdriver SW 6
1 Drill drift MT 3
1 Operating manual
